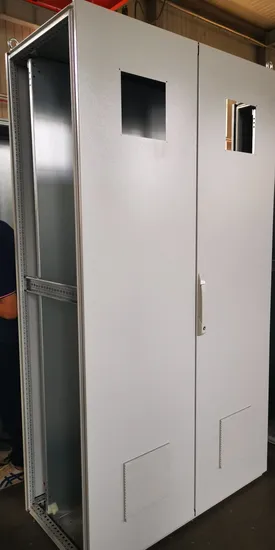

Intelligent Smart Server Rack Cabinet with Network Remote Control Function Enclosure

Basic Info

Model NO.	WB-ICxxxxL6B
Fan Number	Four
Capacity	22u~47u
Certification	CE, ISO, RoHS
Condition	New
Material	SPCC Quality Cold Rolled Steel
Design	OEM Is Welcome!
Static Loading	800 Kg
Colour	Grey, Black, White
Thickness	Mounting Profile 2.0mm, Orthers 1.2~1.5mm
Surface	Frosting / Wrinkle
Transport Package	Cartons, Wooden Case, Wooden Pallet
Specification	42U
Trademark	WebiTelecomms
Origin	Ningbo, China
HS Code	8517709000
Production Capacity	5000PCS Per Month

Packaging & Delivery

Package size per unit product 82.00cm * 102.00cm * 200.00cm Gross weight per unit product 140.000kg

Product Description

Intelligent Server Rack Cabinet with Remote monitor and control system

Intelligent server rack cooling integrates with data center racks to optimize design and support an advanced thermal management infrastructure.Webitelecomms distributes its power distribution and cooling system as per the needs of different companies.

NO.	Item	600W	800W	Materials	Treatment	Note
1	Frame	2	2	1.5mm SPCC steel	Powder coating
2	Front Door	1	1	1.2mm SPCC	Powder coating	mesh door
3	Side Panel	2	2	1.2mm SPCC steel	Powder coating	removable
4	Back Door	1	1	1.2mm SPCC steel	Powder coating	mesh door
5	Cylinder Lock	3	3	Zinc alloy	-	back & side
6	Top cover	1	1	1.2mm SPCC steel	Powder coating
7	Electrical lock	1	1	Zinc alloy	Powder coating
8	Fan unit	1	1	1.2mm SPCC steel	Powder coating	4 fans
9	LCD panel	1	1	LCD screen	-
10	Bottom panel	1	1	1.2mm SPCC steel	Powder coating	Optional parts
11	Earthing cable	2	2	Y/G cable	-	25 cm
12	Castors & Feet	4	4	Carbon steel, PU	Powder coating
13	Sensors	1	1	T & H detector	-
14	Intelligent PDU	1	1	IP PDU	Powder coating	SNMP
15	Mounting angle	6	6	SPCC T=1.2	Powder coating
16	19inch rails	4	4	SPCC T=2.0	Powder coating
17	Vertical C/M	\	2	SPCC T=1.2	Powder coating	Only for 800 W

sual Size list

Model Number	Width×Depth×Height	U	Model Number	Width×Depth×Height	U
WB-IC-6622L6B	600×600×1081 mm	22U	WB-IC-6042L6B	600×1000×1970 mm	42U
WB-IC-6822L6B	600×800×1081 mm	22U	WB-IC-8842L6B	800×800×1970 mm	42U
WB-IC-6022L6B	600×1000×1081 mm	22U	WB-IC-8042L6B	800×1000×1970 mm	42U
WB-IC-6637L6B	600×600×1748 mm	37U	WB-IC-8A42L6B	800×1100×1970 mm	42U
WB-IC-6837L6B	600×800×1748 mm	37U	WB-IC-6047L6B	600×1000×2192 mm	47U
WB-IC-6037L6B	600×1000×1748 mm	37U	WB-IC-6847L6B	600×800×2192 mm	47U
WB-IC-6642L6B	600×600×1970 mm	42U	WB-IC-8847L6B	800x800x2192 mm	47U
WB-IC-6842L6B	600×800×1970 mm	42U	WB-IC-8047L6B	800x1000x2192 mm	47U

FAQS

Q: If Webitelecomms offer OEM service?
A: Yes
Q: What is the payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C
Q: What is your lead time?
A: Usuall 30 days after receiving deposit or original L/C.
Q: What certificates do you have?
A: We have CE, RoHs ,ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, CIQ for Egypt, SASO for Saudi Arabia, etcQ. Which port do you often use when export?
A: Ningbo / Shanghai Port, or as customer request.Q.Can I order with special size ?A.: Sure no problem, Customized size is very welcome.Q.What about the warrantyA.:Normally 2 years warranty , working under normal environment; (excluding man-made damage or neutral disaster)
